Arburg 420 C 1300-350 Injection Moulding Machine
₹12.00 Lakh

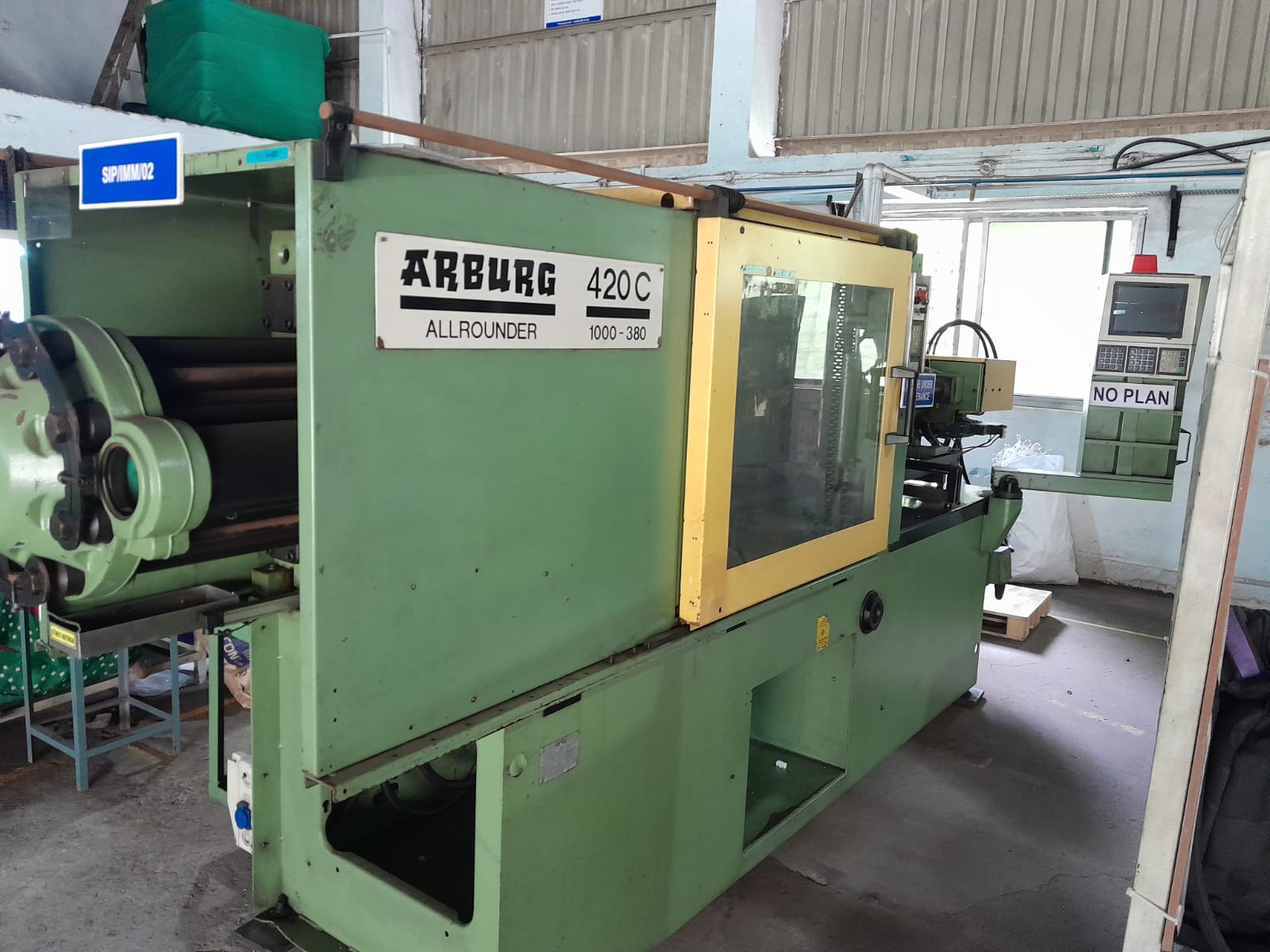

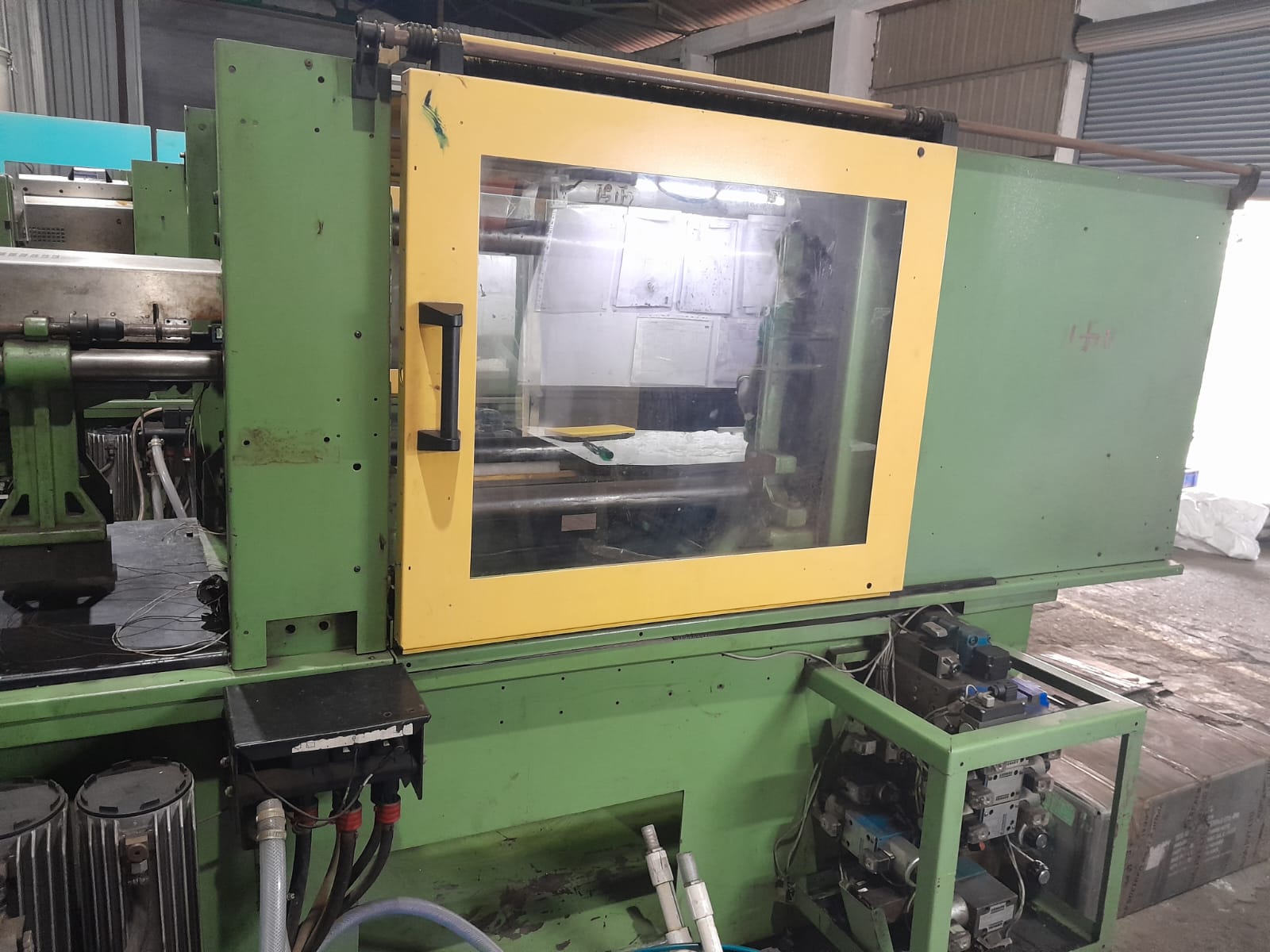

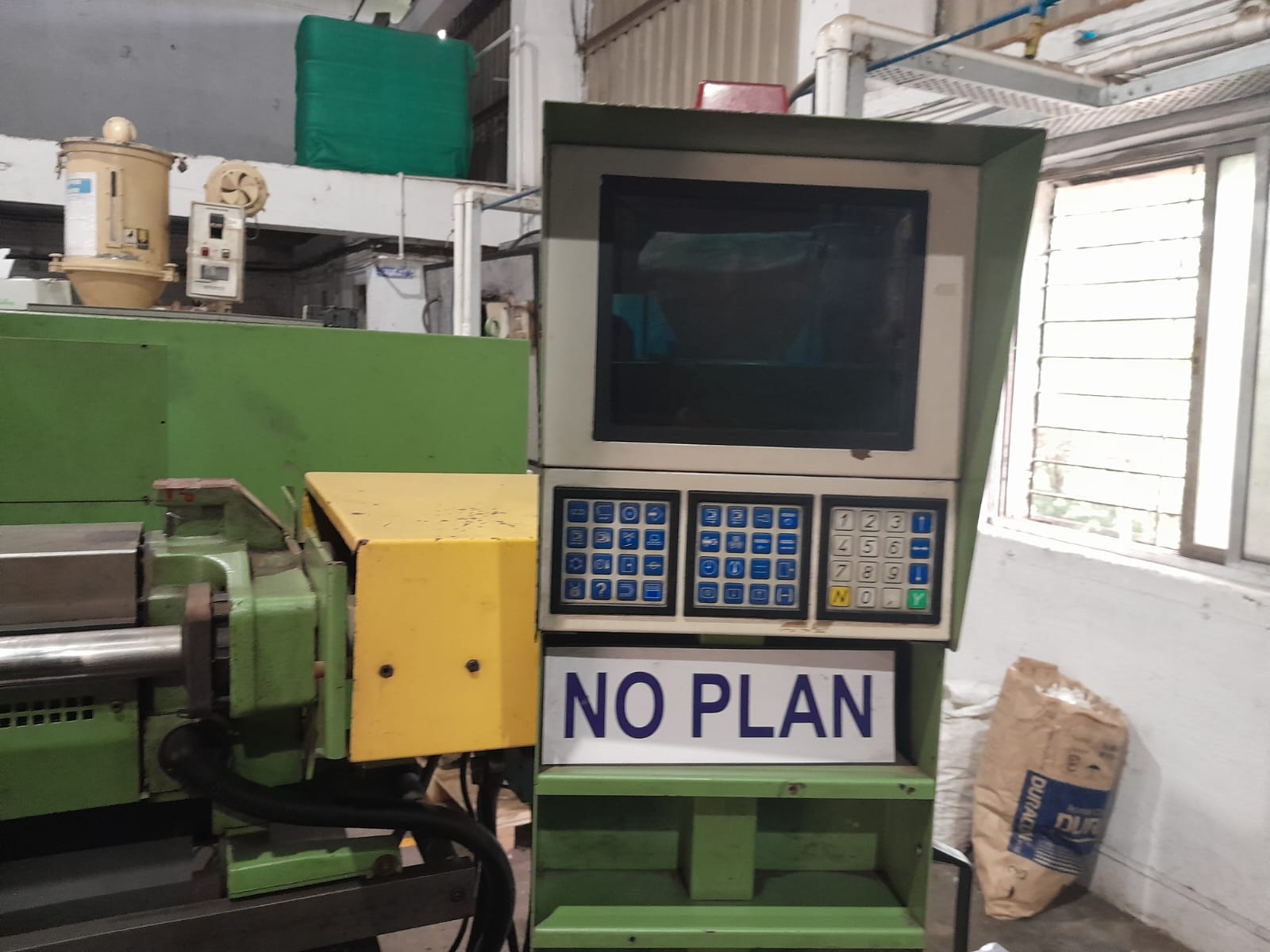

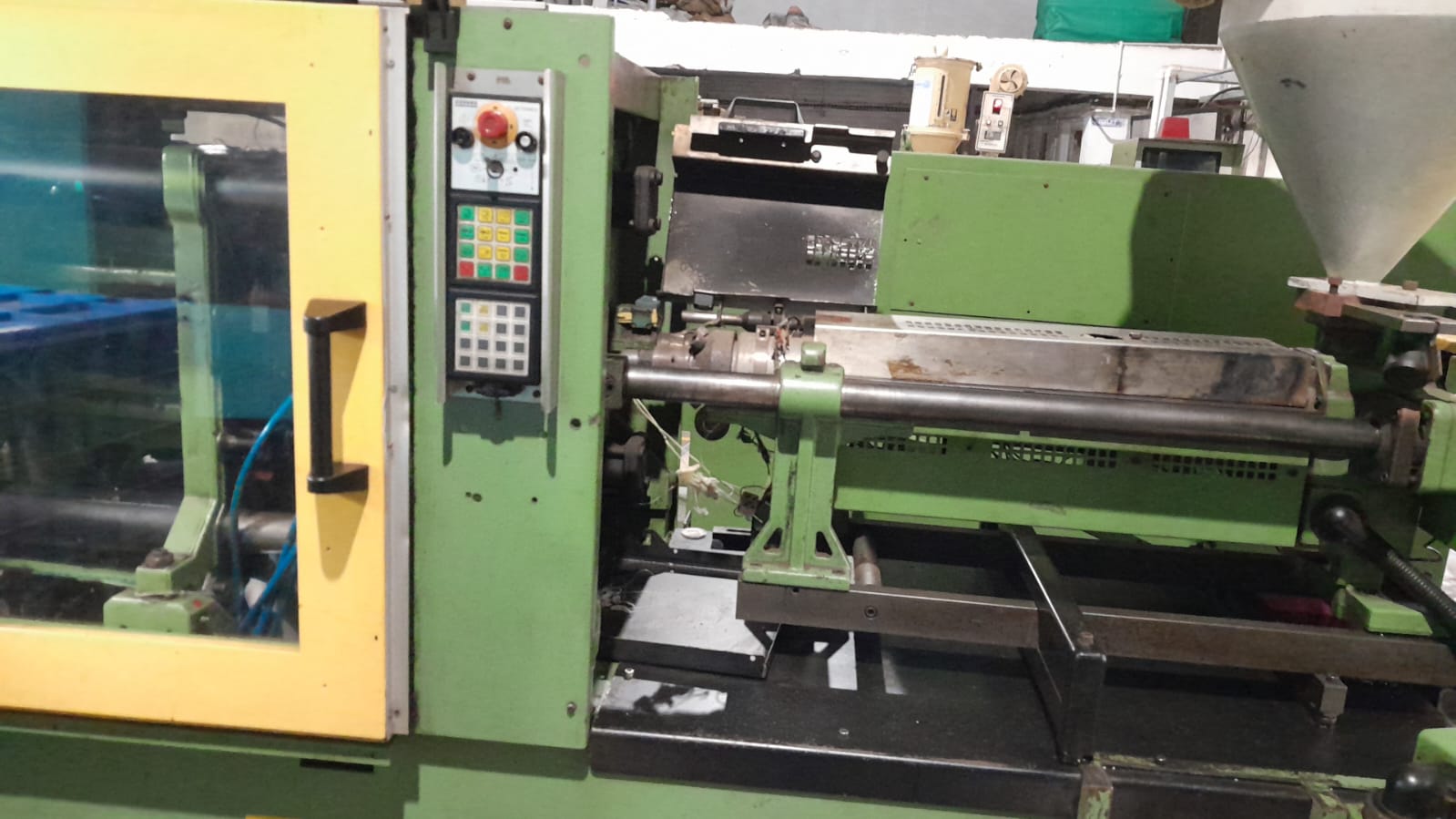

This is a Arburg 420 C 1300-350 Injection Moulding Machine
Closing force: 1300 kN
Clearance between columns: 420 mm x 420 mm
The dimensions of the plates: 605 mm x 605 mm
The size of the mold: 250 mm min
Opening road: 500 mm
Max is distant. between the column: 750 mm
Snail: 45 mm
Injection volume: 230 ccm
Injection pressure: 1670 barGENERAL
Engine: 22 kW
Heaters: 8 kW
Dimensions: 4.3 mx 1.7 mx 1.8 m
Weight: 4100 kg
Automation Grade : Semi Automatic
Machine Structure : Horizontal
Weight : 150 ton
Capacity : higher shot capacity
Raw Material : HDPE, PE, PP, PS, PMMA, All Plastic Materials
Machine Type : Preform Injection, Plastic injection molding machine
Total machine weight: 6500kg.
It is in a working condition.
It has been recently serviced.
No pending loan against the machine.
