Automatic Grade	Semi-Automatic, Automatic
Cutting Method	Plasma , Laser , Metal , Flame
Max Cutting Thickness	25 mm , 30 mm
Max Cutting Speed	2000-3000 mm/min , 3000-4000 mm/min , upto 6000 mm
Max Cutting Width	2000-3000 mm, 3000-4000 mm, >4000 mm
Max Cutting Length	16000 mm
Condition	New
Flame cutting thickness	5-250mm
Max running speed	10000mm/min
Nesting software	Australia Fatcam
Plasma cutting thickness	According To Plasma Power

A CNC plasma flame cutting machine is an industrial cutting system that combines plasma cutting and oxy-fuel (flame) cutting technologies. It is used for precision cutting of various types of metals, including steel, aluminum, and stainless steel.

Here are some key features and components of a CNC plasma flame cutting machine:

Cutting Table: The machine is equipped with a sturdy cutting table where the metal workpiece is placed for cutting. The table often has a grid or slats to support the material and allow for proper ventilation during the cutting process.

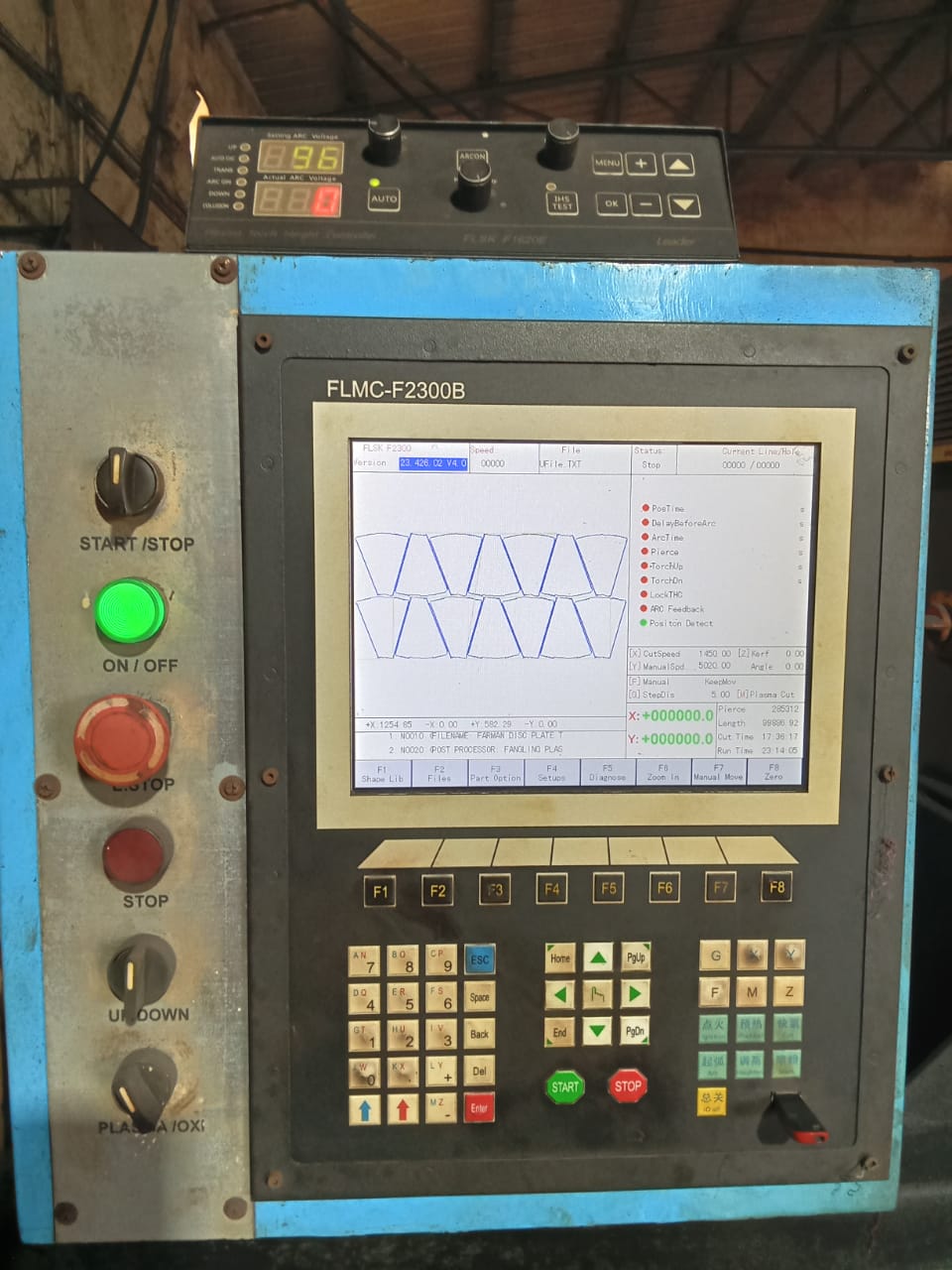

CNC Control System: The machine is controlled by a computerized system that uses CNC software to control the movement and cutting parameters. Operators program the machine by inputting the desired cutting dimensions and shapes, and the CNC system translates these instructions into precise cutting paths.

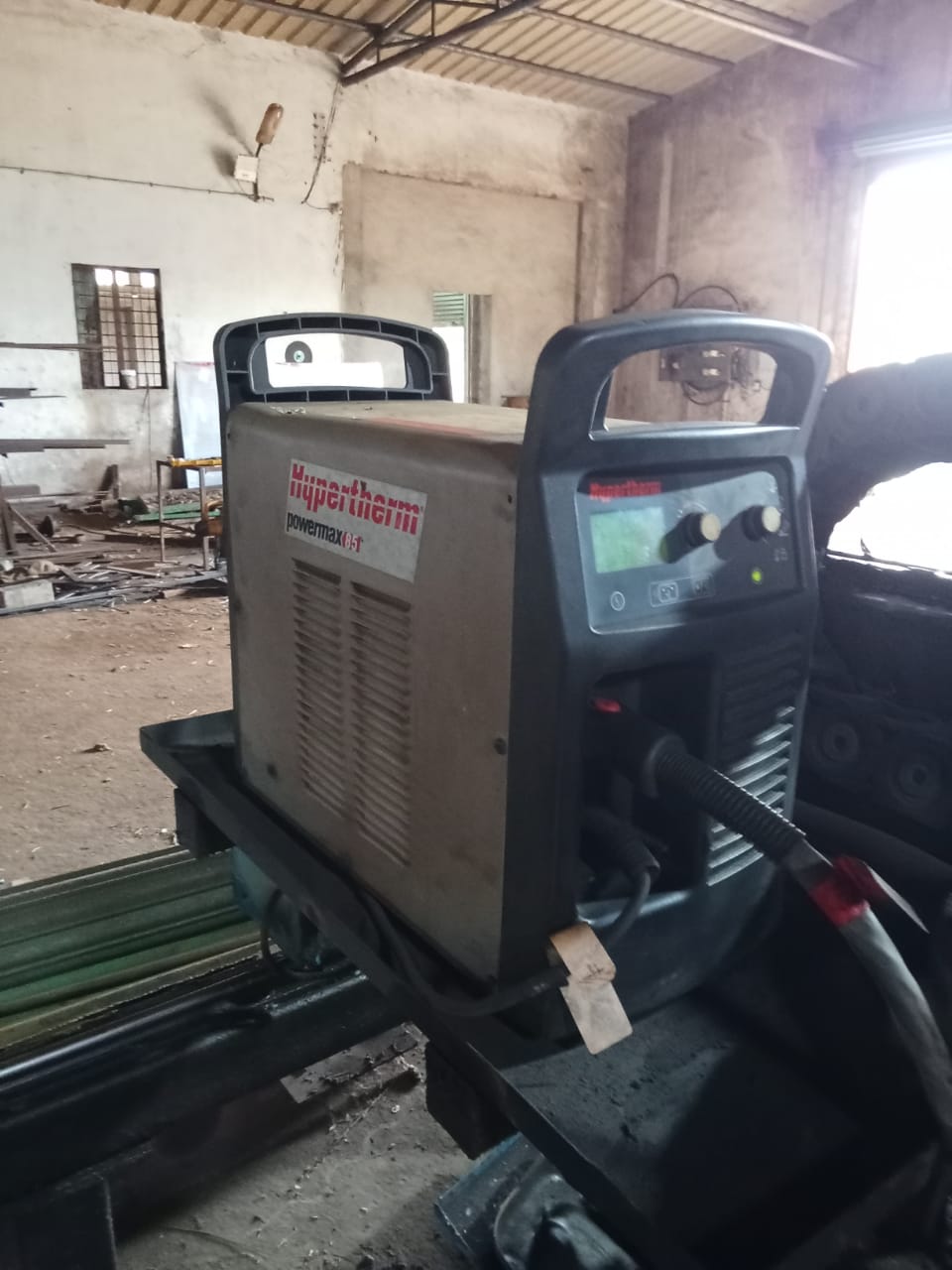

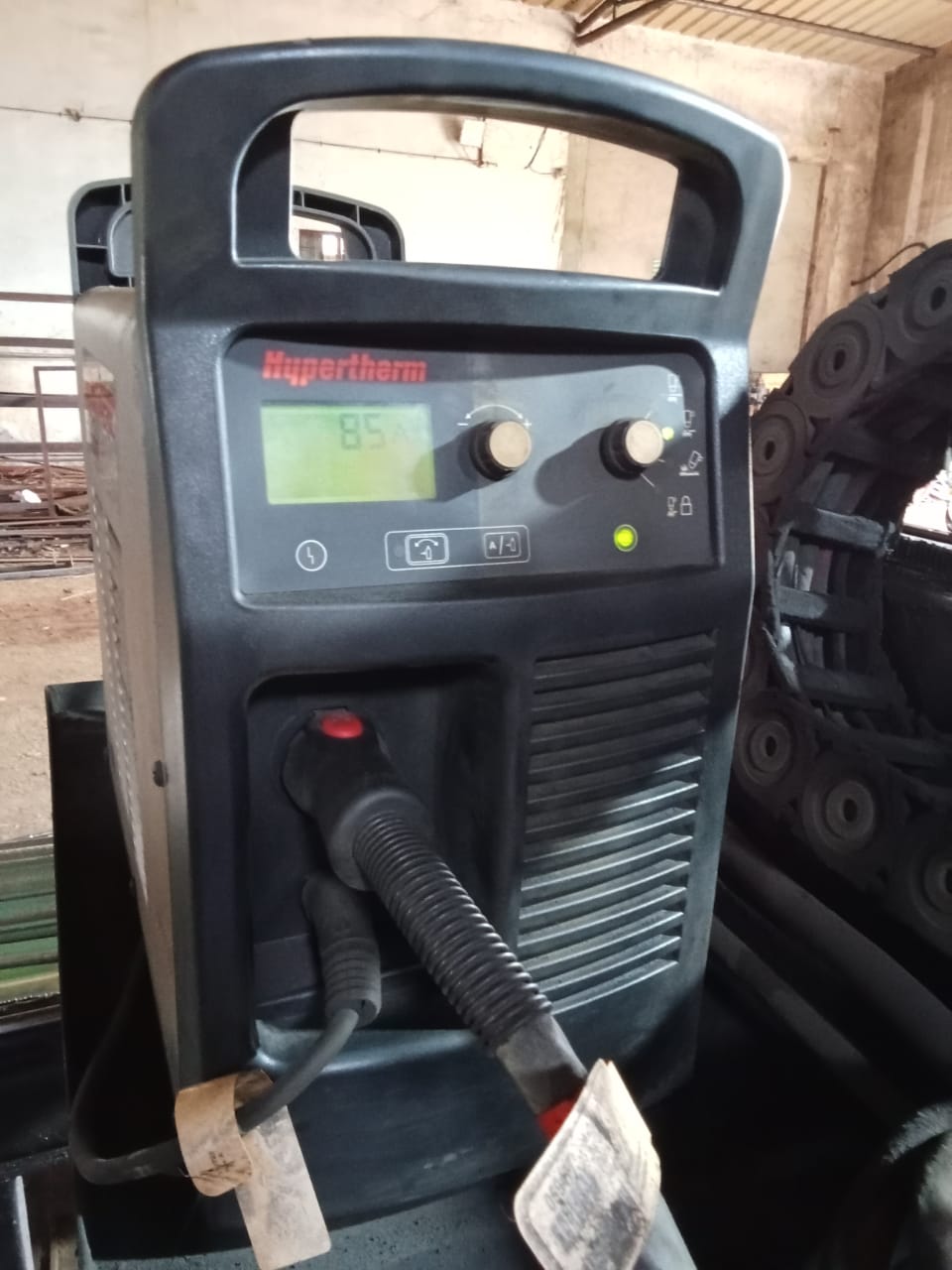

Plasma Cutting Torch: A plasma cutting torch is used for cutting thinner metals. It generates a high-velocity plasma jet by ionizing a gas (typically compressed air or nitrogen) and passing it through a small orifice. The plasma arc melts the metal, and a high-pressure gas stream blows away the molten material, creating a clean cut.

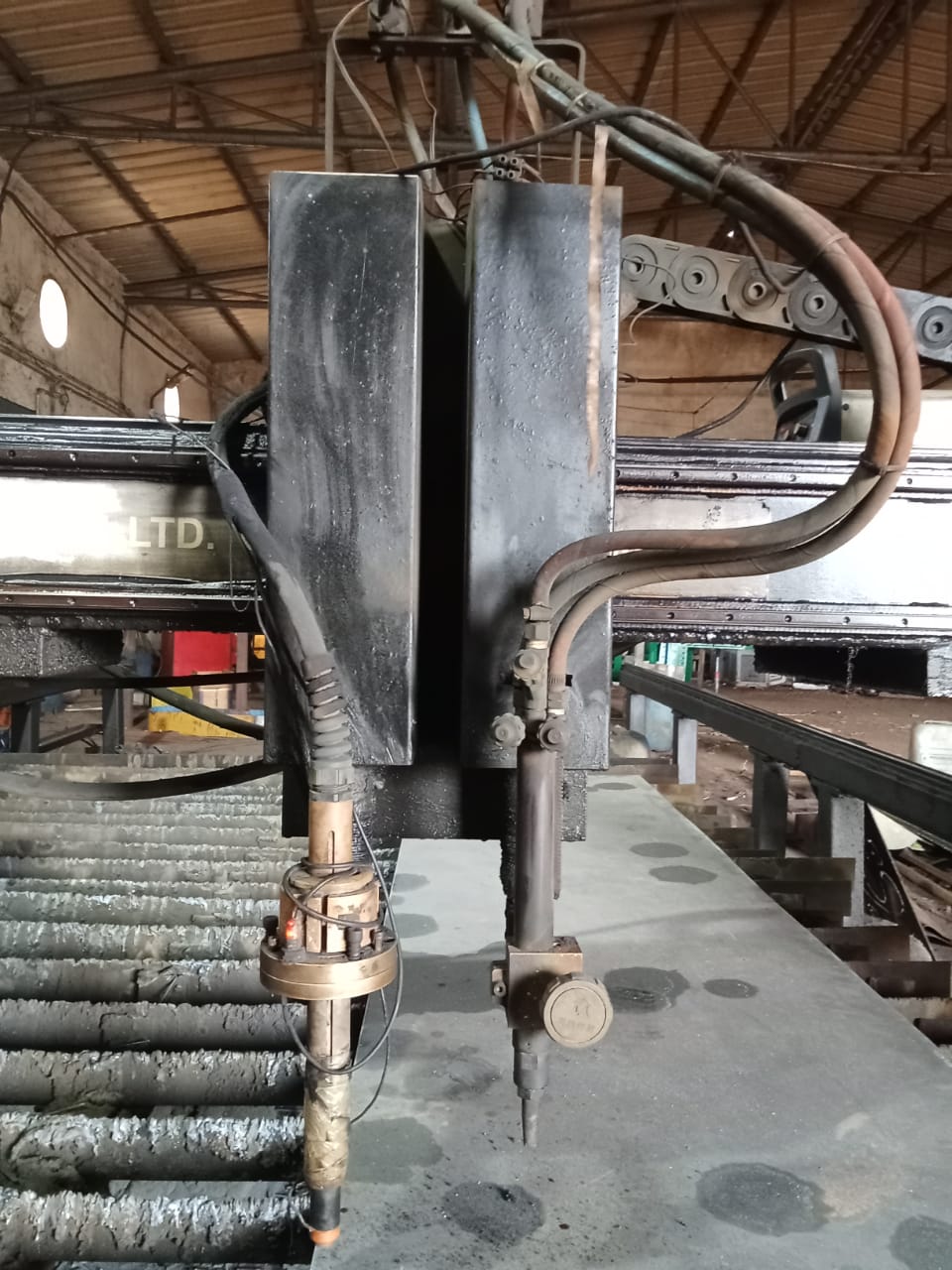

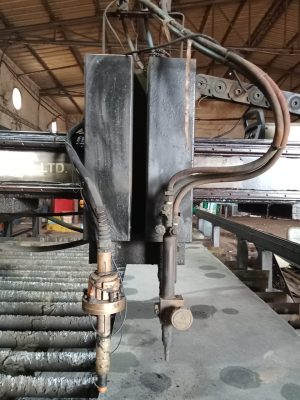

Oxy-Fuel Cutting Torch: An oxy-fuel cutting torch is used for cutting thicker metals. It uses a mixture of fuel gas (such as acetylene or propane) and oxygen to create a high-temperature flame that melts the metal. The oxygen stream blows away the molten material, resulting in a cut.
CNC Software: Specialized software is used to create cutting programs and designs. These programs can be created manually or imported from computer-aided design (CAD) software. The software enables precise control of cutting parameters, such as cutting speed, torch height, and piercing settings.
Extraction and Ventilation System: To remove fumes, smoke, and metal particles generated during cutting, a ventilation and extraction system is integrated with the machine. This system ensures a safe working environment by removing harmful substances.

CNC plasma flame cutting machines offer high cutting precision, speed, and versatility. They are widely used in industries such as metal fabrication, automotive, aerospace, and shipbuilding. The specific features, cutting capacities, and configurations of CNC plasma flame cutting machines can vary depending on the manufacturer and model.

If you are interested in purchasing or learning more about CNC plasma flame cutting machines, I recommend reaching out to manufacturers or suppliers who specialize in industrial cutting equipment. They can provide detailed information, specifications, pricing, and guidance to help you select the most suitable machine for your specific needs.

Automatic Grade	Semi-Automatic, Automatic
Cutting Method	Plasma , Laser , Metal , Flame
Max Cutting Thickness	25 mm , 30 mm
Max Cutting Speed	2000-3000 mm/min , 3000-4000 mm/min , upto 6000 mm
Max Cutting Width	2000-3000 mm, 3000-4000 mm, >4000 mm
Max Cutting Length	16000 mm
Condition	New
Flame cutting thickness	5-250mm
Max running speed	10000mm/min
Nesting software	Australia Fatcam
Plasma cutting thickness	According To Plasma Power

Here are some key features and components of a CNC plasma flame cutting machine:

Cutting Table: The machine is equipped with a sturdy cutting table where the metal workpiece is placed for cutting. The table often has a grid or slats to support the material and allow for proper ventilation during the cutting process.
CNC Control System: The machine is controlled by a computerized system that uses CNC software to control the movement and cutting parameters. Operators program the machine by inputting the desired cutting dimensions and shapes, and the CNC system translates these instructions into precise cutting paths.
Plasma Cutting Torch: A plasma cutting torch is used for cutting thinner metals. It generates a high-velocity plasma jet by ionizing a gas (typically compressed air or nitrogen) and passing it through a small orifice. The plasma arc melts the metal, and a high-pressure gas stream blows away the molten material, creating a clean cut.
Oxy-Fuel Cutting Torch: An oxy-fuel cutting torch is used for cutting thicker metals. It uses a mixture of fuel gas (such as acetylene or propane) and oxygen to create a high-temperature flame that melts the metal. The oxygen stream blows away the molten material, resulting in a cut.
CNC Software: Specialized software is used to create cutting programs and designs. These programs can be created manually or imported from computer-aided design (CAD) software. The software enables precise control of cutting parameters, such as cutting speed, torch height, and piercing settings.
Extraction and Ventilation System: To remove fumes, smoke, and metal particles generated during cutting, a ventilation and extraction system is integrated with the machine. This system ensures a safe working environment by removing harmful substances.
