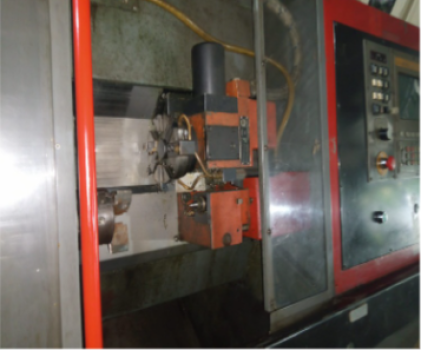

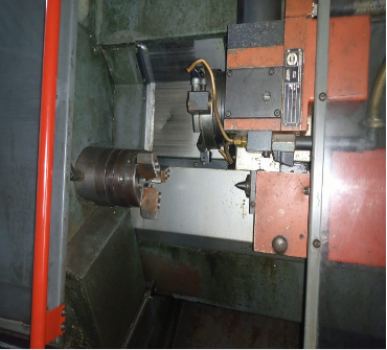

EMCO Emcoturn 320 CNC Lathe with 3 mtr Auto feeder
This is a EMCO Emcoturn 320 CNC Lathe with 3 mtr Auto feeder
Specifications:
Make : EMCO
Model / Type : Emcoturn 320
Swing diameter over bed : 180 mm
Swing diameter over cross slide : 75 mm
Turning diameter (theoretical) : 120 mm
Workpiece size for chuck and tailstock (Dia/l) 75/120 mm
Workpiece size for collet and tailstock (Dia/l) 22/140 mm
Travels (Z/X) : 176/56 mm
Spindle bore : 30 mm
Feed force (Z/X) : 3000 N
Rapid traverse : 6 m/min
Tool holder for steel cross section : 12 x 12 mm
Tool holder for drill diameter : 16 mm
Control : SIEMENS Sinumerik
Dimensions (l x w x h) : 1800 x 1000 x 1600 mm
Weight : 1000kg
With 8-times tool turret
Make : EMCO
Model / Type : Emcoturn 320
Swing diameter over bed : 180 mm
Swing diameter over cross slide : 75 mm
Turning diameter (theoretical) : 120 mm
Workpiece size for chuck and tailstock (Dia/l) 75/120 mm
Workpiece size for collet and tailstock (Dia/l) 22/140 mm
Travels (Z/X) : 176/56 mm
Spindle bore : 30 mm
Feed force (Z/X) : 3000 N
Rapid traverse : 6 m/min
Tool holder for steel cross section : 12 x 12 mm
Tool holder for drill diameter : 16 mm
Control : SIEMENS Sinumerik
Dimensions (l x w x h) : 1800 x 1000 x 1600 mm
Weight : 1000kg
With 8-times tool turret
It is in a good working condition.
No pending loan against the machine.
It has been Recently serviced.
This is a EMCO Emcoturn 320 CNC Lathe with 3 mtr Auto feeder
Specifications:
Make : EMCO
Model / Type : Emcoturn 320
Swing diameter over bed : 180 mm
Swing diameter over cross slide : 75 mm
Turning diameter (theoretical) : 120 mm
Workpiece size for chuck and tailstock (Dia/l) 75/120 mm
Workpiece size for collet and tailstock (Dia/l) 22/140 mm
Travels (Z/X) : 176/56 mm
Spindle bore : 30 mm
Feed force (Z/X) : 3000 N
Rapid traverse : 6 m/min
Tool holder for steel cross section : 12 x 12 mm
Tool holder for drill diameter : 16 mm
Control : SIEMENS Sinumerik
Dimensions (l x w x h) : 1800 x 1000 x 1600 mm
Weight : 1000kg
With 8-times tool turret
Make : EMCO
Model / Type : Emcoturn 320
Swing diameter over bed : 180 mm
Swing diameter over cross slide : 75 mm
Turning diameter (theoretical) : 120 mm
Workpiece size for chuck and tailstock (Dia/l) 75/120 mm
Workpiece size for collet and tailstock (Dia/l) 22/140 mm
Travels (Z/X) : 176/56 mm
Spindle bore : 30 mm
Feed force (Z/X) : 3000 N
Rapid traverse : 6 m/min
Tool holder for steel cross section : 12 x 12 mm
Tool holder for drill diameter : 16 mm
Control : SIEMENS Sinumerik
Dimensions (l x w x h) : 1800 x 1000 x 1600 mm
Weight : 1000kg
With 8-times tool turret
It is in a good working condition.
No pending loan against the machine.
It has been Recently serviced.
