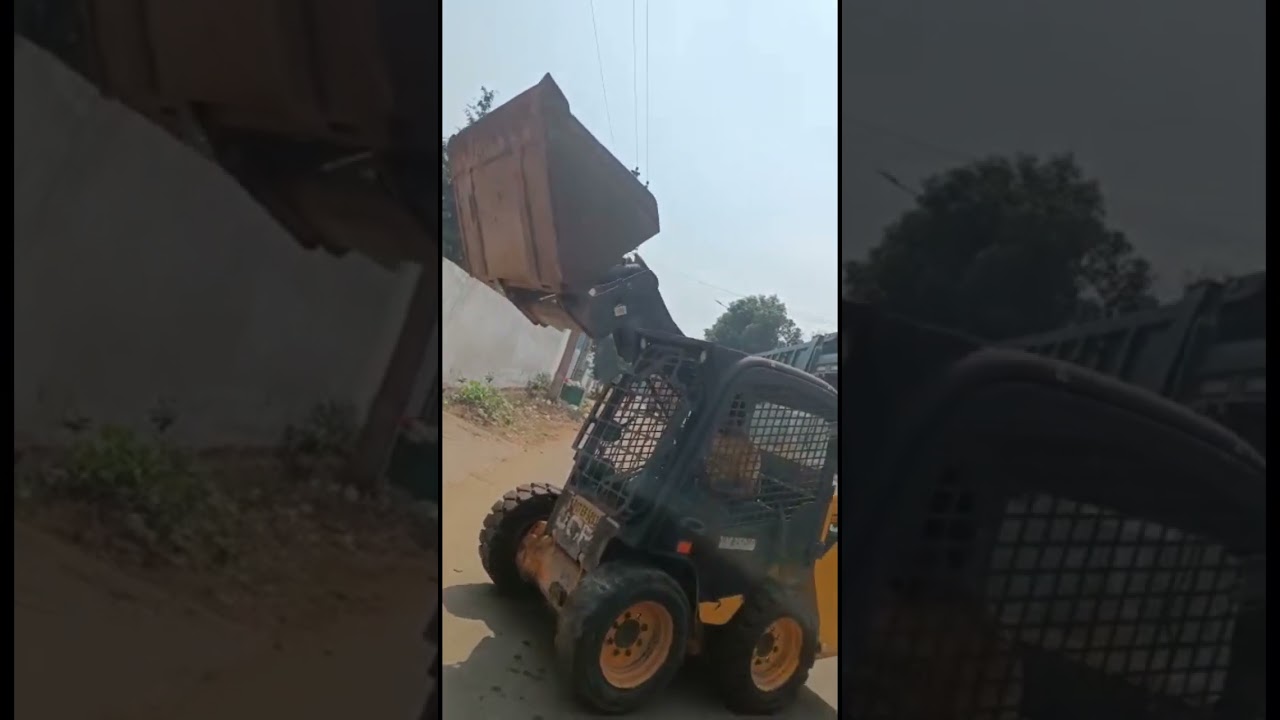

This is a JCB 135 Skid Steer Loader Machine
| Rated Operating Capacity | 612 kg |
| Net Engine Power | 46 hp |
| Brand | JCB |
| Model | ROBOT 135 |
| Maximum operating weight | 2770 kg |
| Loader Bucket Capacity | 0.36 CuM |
| Fuel Tank Capacity | 98 L |
| Tipping Load | 1224 kg |
| Engine Model | Perkins 404D-22 |
| Max Travel Speed | 12 km/ h |
| Hydraulic Pump Capacity | 70 L/min |
| Max Hydraulic Pressure | 230 Bar |
| Engine Oil Capacity | 10 L |
| Chain box capacity | 19 L |
| Tyre Size | 10 x 16.5 – 8 PR |
| Wheelbase | 1.07 m |
| Length with Bucket on Ground | 3.49 m |
| Height to Top of Cab | 1.98 m |
| Dump Height | 2.26 m |
| Maximum Dump Angle | 42° |
| Vehicle Width over Tires | 1.52 m |
| Ground Clearance | 210 mm |
| Departure Angle | 25° |
| Turning Radius from Center – Machine Rear | 1.65 m |
| Turning Radius from Center – Coupler | 1.10 m |
| Turning Radius from Center – Bucket | 2.09 m |
| Max Torque | 143 N.m |
| Battery | 90 AH, 900 CCA |
| Alternator Output | 65 Amp |
Features
- Unmatched Operator Comfort
- Low Maintenance Cost
- Ease Of Access And Serviceability
Applications
- Loading & Unloading
- Construction Purpose
- Material Transportation On Sites
It is in a excellent working condition.
No pending loans against the machine.
