JCB JS81 Crawler Excavator
₹24.00 Lakh
This is a JCB JS81 Crawler Excavator
Engine
| Maximum Engine Power | 76 hp |
| No. of Cylinder | 4 |
| Battery | 100 Ah |
Weight
| Maximum Operating Weight | 8400 kg |
Performance
| Maximum Bucket Capacity | 0.32 m³ |
| Gradeability | 35° |
| Travel Speed | 5.1 km/h |
| Swing Speed | 12.5 rpm |
| Ground Clearance | 365 mm |
| Dipper tearout with boost | 4134 Kgf |
Dimensions
| Transport height with monoboom | 2768 mm |
| Track length on ground | 2244 mm |
| Track height | 660 mm |
| Width of super structure | 2220 mm |
| Undercarriage overall length | 2840 mm |
| Transport length with monoboom | 6226 mm |
| Hydraulic Pump Minimum flow | 2 x 70.3 lpm |
Working Range
| Max digging depth | 4007 mm |
| Max digging height | 7094 mm |
| Max. digging reach | 6454 mm |
| Maximum dumping height | 5401 mm |
| Tail Swing Radius | 1841 mm |
| Boom Length | 3.7 m |
| Arm Length | 1.74 m |
Bucket
| Bucket rotation | 184° |
| Bucket tearout with boost | 5755 Kgf |
Refiling Capacity
| Engine Oil | 14 L |
| Fuel Tank | 164 L |
| Hydraulic Tank | 55 L |
| Cooling System | 23 L |
Additional Details
| Brand | JCB |
| Condition of Excavator | New |
| Excavator Model | JS81 |
| Engine Type | Water- Cooled |
| Shoe Width | 450 mm |
| Overall Height (Top of Cab) | 2722 mm |
| Engine Model | Kirloskar 4R 1040 NA |
- Spacious Cabin
- Low Operating Cost
- High Fuel Efficiency
- Low Noise Level
- High Visibility
- Grading / Landscaping
- Snow Removal
- Forestry
- Construction
- Mining
The JCB JS81 is a compact crawler excavator designed for use in confined spaces where maneuverability is essential. It is powered by a 48.5 hp Perkins 404D-22 engine that provides high torque and fuel efficiency.
The excavator has a maximum digging depth of 4.67 meters and a maximum reach of 7.15 meters, making it suitable for a wide range of excavation tasks. It also features a reinforced boom and dipper for added strength and durability.
The cab of the JCB JS81 is designed for operator comfort and safety, with excellent visibility, ergonomic controls, and a climate control system. The cab is also fully ROPS and FOPS compliant, ensuring operator safety in case of an accident.
The JCB JS81 comes equipped with various safety features, including a reverse camera, a hydraulic safety valve, and a boom safety check valve, which prevents the boom from dropping if the hydraulic pressure fails.
Overall, the JCB JS81 crawler excavator is a reliable and efficient machine that is ideal for a variety of construction and excavation tasks, including digging foundations, trenching, and site clearance. It offers high performance, durability, and operator comfort, making it a popular choice among contractors and construction companies.

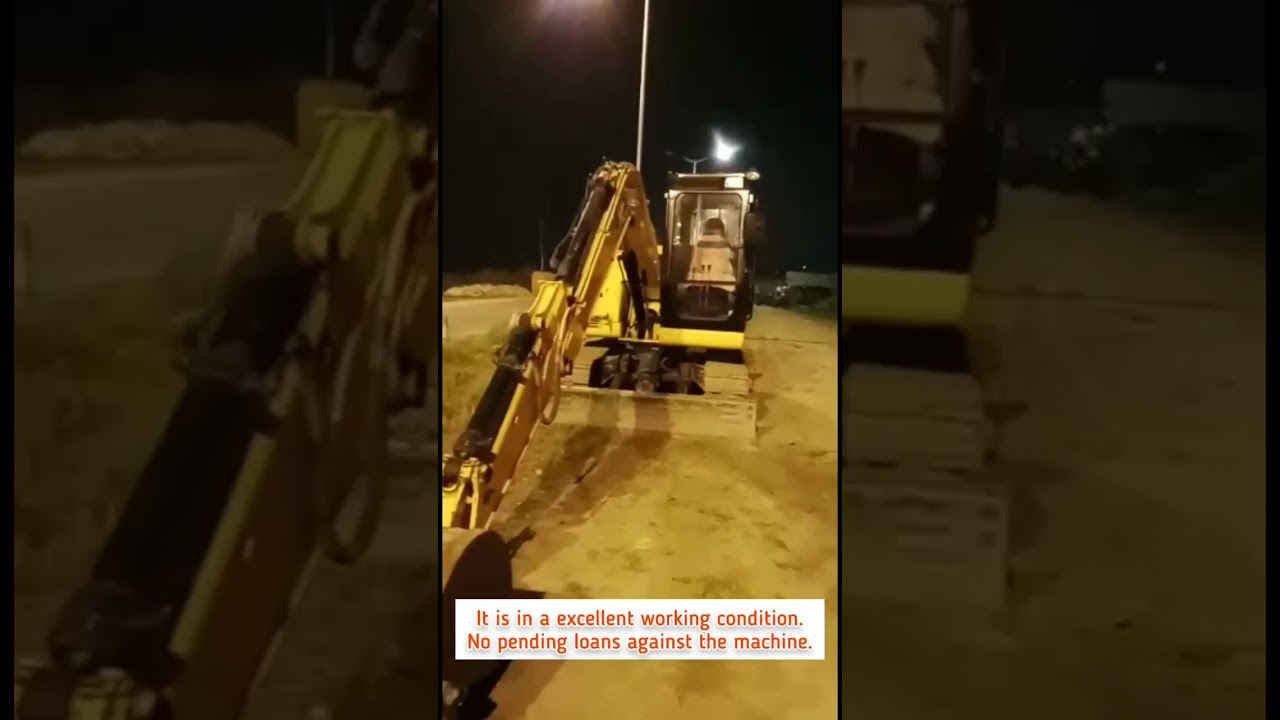

It is in a excellent working condition.
No pending loans against the machine.
