L&T 990HF Double Drum Tandem Compactor Roller
₹24 Lakh

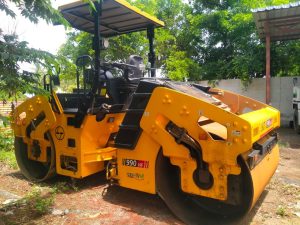

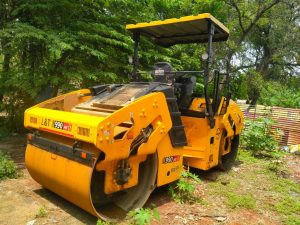

This is a L&T 990HF Double Drum Tandem Compactor Roller
| Operating weight | 10000 kg |
| Brand | L&T |
| Model | 990HF |
| Roller Type | Double Drum Roller |
| Drum width | 1730 mm |
| Engine Power | 76 hp |
| Amplitude Setting | 1/0.4 mm |
| Centrifugal Force | 78/77 kN |
| Max Travel Speed | 12 km/h |
| Vibration Frequency | 35/60 Hz |
| Max Working Speed | 6 km/h |
| Wheel Base | 3400 mm |
| Engine Coolant Capacity | 18 L |
| Engine Crank Case | 9.5 L |
| Hydraulic Tank Capacity | 90 L |
| Drum Oscillation angle | ±10° |
| Turning Radius | 3.6 m |
| Battery | 754 CCA as per JIS (Max 900) |
| Alternator output | 65 A |
| Engine Type | 4 Stroke Inline Turbocharged Intercooled |
| Engine make | Ashok Leyland |
| Rear Axle Load | 5000 kg |
| Front Axle Load | 5000 kg |
| Max torque | 350 Nm |
| No of Cylinders | 4 |
| Static Linear Load | 28.9/28.9 kg/cm |
| Steering Angle | ±37° |
| Fuel Tank Capacity | 140 L |
| Engine Model | H4CTIC3N- BSIII |
| Overall machine width | 2000 mm |
| Overall machine length | 4620 mm |
| Drum Shell Thickness | 19 mm |
| Ground Clearance | 380 mm |
| Drum Diameter | 1220 mm |
| Overall machine height | 3250 mm |
- Inline Fuel Injection Pump
- Patented Vibration Mechanism For High Performance
- Closed Circuit Hydraulic System
- Gravel Compaction
- Asphalt Compaction
- Concrete Compaction
- Soil Compaction
The L&T 990HF Double Drum Tandem Compactor Roller is a heavy-duty construction equipment used for compacting soil, asphalt, and other materials. It is commonly used in road construction, highway projects, and other infrastructure development.
Here are some key features and specifications of the L&T 990HF Double Drum Tandem Compactor Roller:
- Operating Weight: The operating weight of the roller typically ranges from 9 to 10 tons, depending on the configuration and optional attachments.
- Drum Configuration: The roller has two drums, one in the front and one in the rear, which are used for compaction. The drums are typically made of steel and can be either smooth or equipped with padfoot shells for specialized applications.
- Drum Width: The drum width can vary, but it is typically around 1.5 to 1.8 meters (59 to 71 inches), allowing for efficient coverage and compaction of the surface.
- Engine Power: The roller is equipped with a powerful diesel engine that provides the necessary power for operation. The engine power can vary depending on the specific model but is typically in the range of 75 to 100 horsepower.
-
Vibratory System: The L&T 990HF Double Drum Tandem Compactor Roller is often equipped with a vibratory system that helps in achieving better compaction results. The vibratory system consists of eccentric weights that create vibrations in the drums, enhancing the compaction process.
-
Operator Comfort and Safety: The roller is designed with operator comfort and safety in mind. It features an ergonomic operator station with controls for easy operation. Additionally, it may have features such as a ROPS (Roll Over Protective Structure) canopy or cabin, seat belts, and other safety measures to ensure the well-being of the operator.
- Maneuverability: The roller is designed for easy maneuverability, allowing it to navigate through tight spaces and work efficiently in different terrains.
It’s important to note that specific details and specifications may vary based on the model and configuration of the L&T 990HF Double Drum Tandem Compactor Roller. It’s always recommended to refer to the manufacturer’s documentation or contact the company directly for the most accurate and up-to-date information
It is in a excellent working condition.
No pending loans against the machine.
