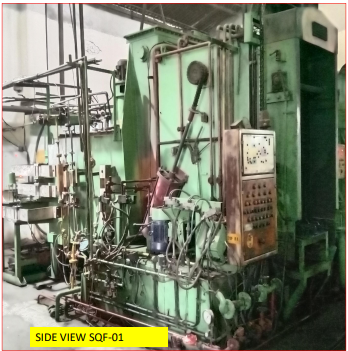

SEALED QUENCH FURNACE – SQF-01
This is a SQF-01
MODEL:- SEALED QUENCH FURNACE
APPLICATION:- CARBURIZING, CARBONITRIDING&HARDENING
TYPE OF HEATING:- ELECTRIC
EFFECTIVE DIAMENTION:-900 L x 600 W x 400 H (mm)
Tray Dimensions : 900 L x 600 W x 40 H (mm)
Quenching oil volume :- 2800 Litres
Maximum temperature : Upto 930 Deg.C
Charge Weight: 350 kgs gross
Furnace Heating electric power : 60 kW
Transformer Capacity : 101 KVA No. of
heating elements : 06 Nos. on two side walls. 03 Nos. on right wall and 03 Nos. on left
Furnace Atmosphere: (METHANOL+NITROGEN+LPG), Ammonia
HEATER LOAD:- 66KW
It is in a good working condition.
No pending loan against the machine.
It has been Recently serviced.
This is a SEALED QUENCH FURNACE – SQF-01
MODEL:- SEALED QUENCH FURNACE
APPLICATION:- CARBURIZING, CARBONITRIDING&HARDENING
TYPE OF HEATING:- ELECTRIC
EFFECTIVE DIAMENTION:-900 L x 600 W x 400 H (mm)
Tray Dimensions : 900 L x 600 W x 40 H (mm)
Quenching oil volume :- 2800 Litres
Maximum temperature : Upto 930 Deg.C
Charge Weight: 350 kgs gross
Furnace Heating electric power : 60 kW
Transformer Capacity : 101 KVA No. of
heating elements : 06 Nos. on two side walls. 03 Nos. on right wall and 03 Nos. on left
Furnace Atmosphere: (METHANOL+NITROGEN+LPG), Ammonia
HEATER LOAD:- 66KW
It is in a good working condition.
No pending loan against the machine.
It has been Recently serviced.
