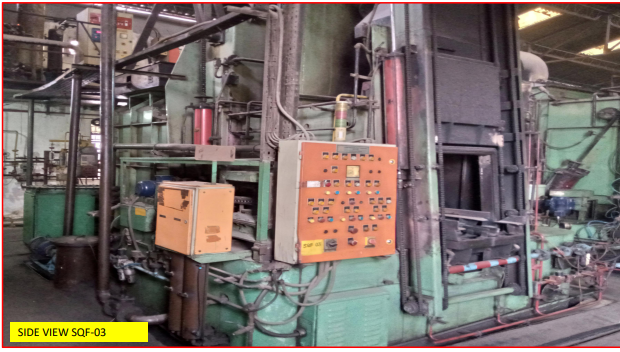

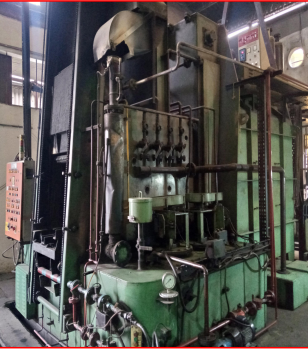

SEALED QUENCH FURNACE – SQF-03
This is a SEALED QUENCH FURNACE – SQF-03
MODEL :Â SEALED QUENCH FURNACE
Application : CARBURIZING,CARBONITRIDING&HARDENING
TYPE OF HEATING:- ELECTRIC
EFFECTIVE DIAMENTION:-900 L x 600 W x 600 H (mm)
Tray Dimensions : 900 L x 600 W x 40 H (mm)
Quenching oil volume :- 5600 Litres
Maximum temperature : Upto 930 Deg.C
Charge Weight : 450 kgs gross
Furnace Heating electric power : 65 kW
Transformer Capacity : 101 KVA
No. of heating elements : 08 Nos. on two side walls. 04 Nos. on right wall and 04 Nos. on
left
Furnace Atmosphere : (METHANOL+NITROGEN+LPG), Ammonia
Heater Load -80KW
It is in a good working condition.
No pending loan against the machine.
It has been Recently serviced.
